Lightweight galvanised steel components are precision-engineered to exact tolerances with an accuracy of better than 1mm. Shaping and cutting is performed by a fully-automated, highly portable computer-controlled roll former.

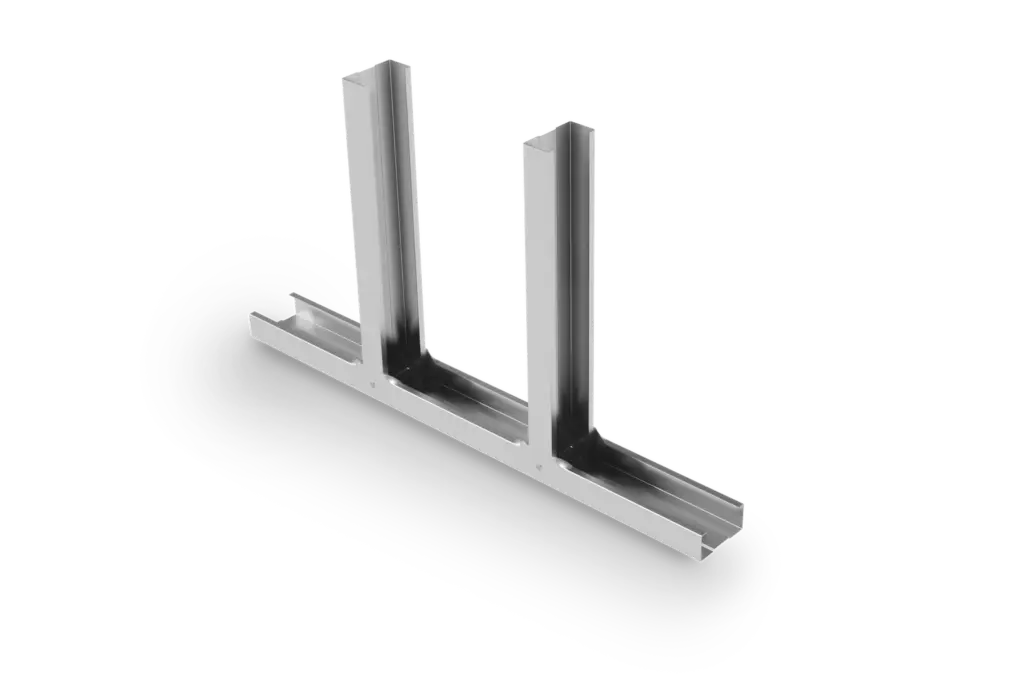

Base track
Typical Protec connection between stud and base track fixed with two 5.5mm tek screws or rivets depending on use of SFS

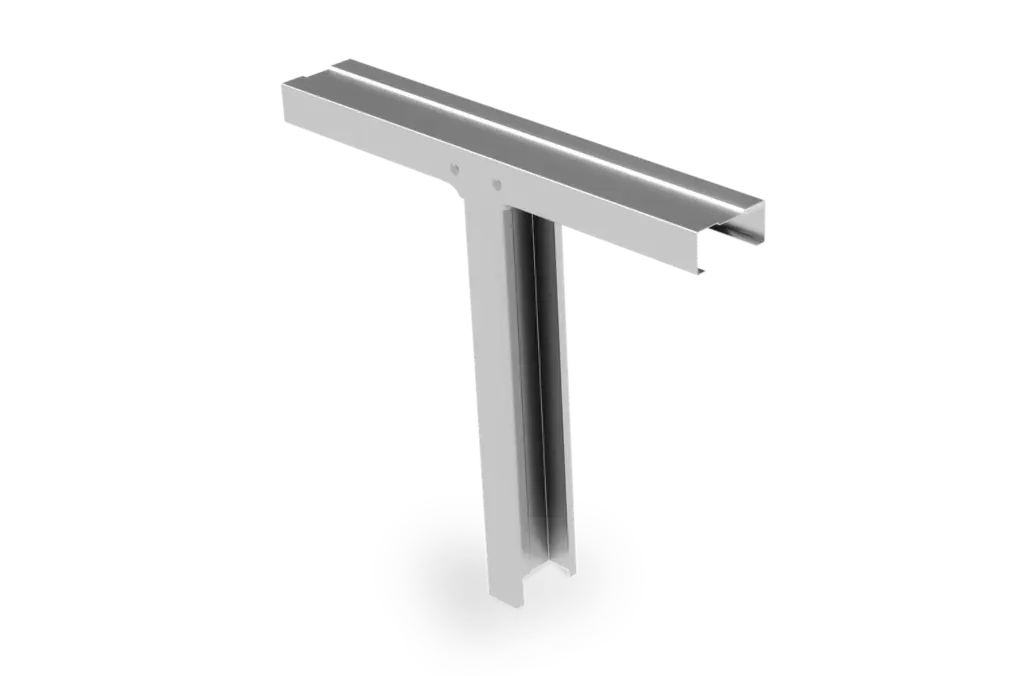

Deflection Head
Protec deflection detail with four number 5.5mm tek screws fixed to head track allowing stud to move vertically.

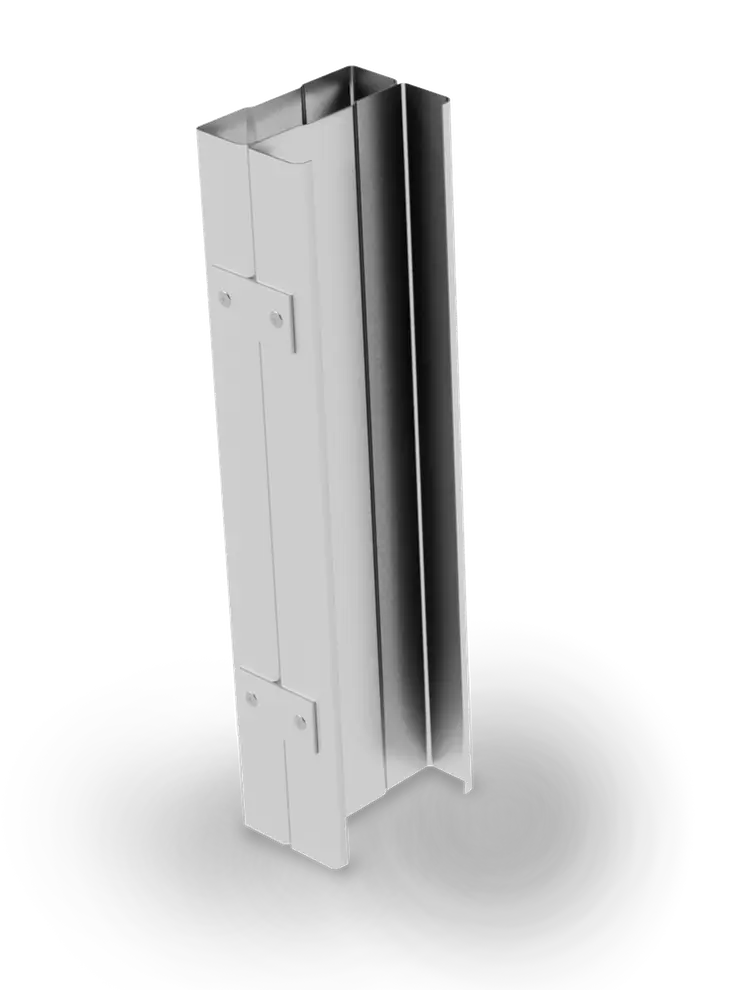

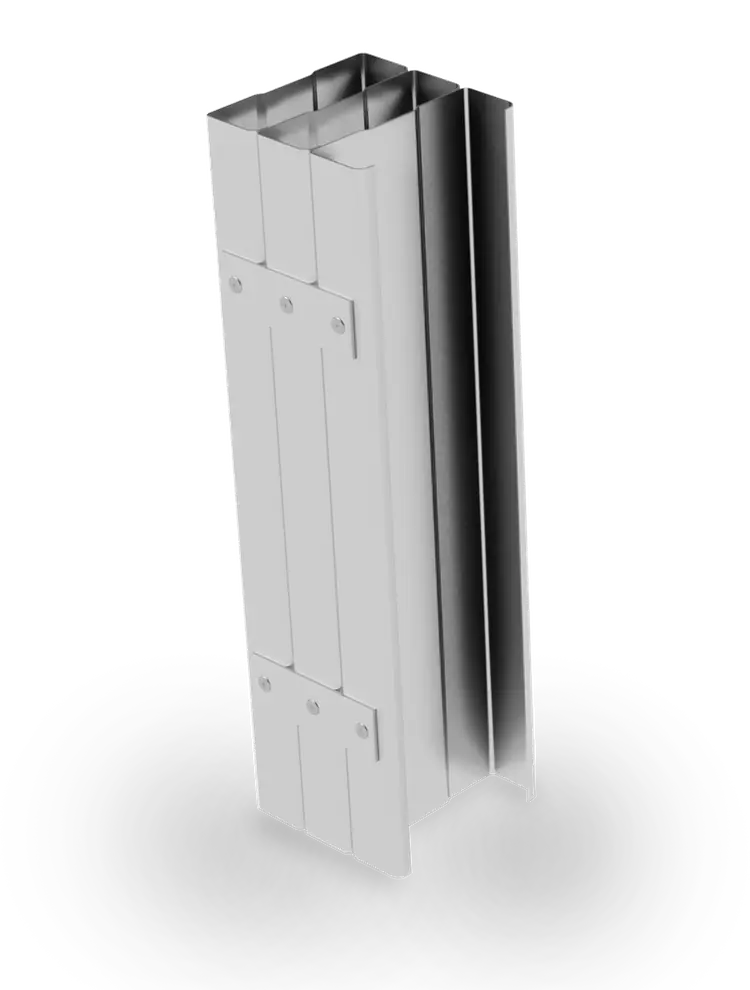

DOUBLE & TRIPLE JAMB STUDS
Required for larger and heavier openings, studs are fitted back to back and tied with galvanised strap to increase strengh and act as one single stud.

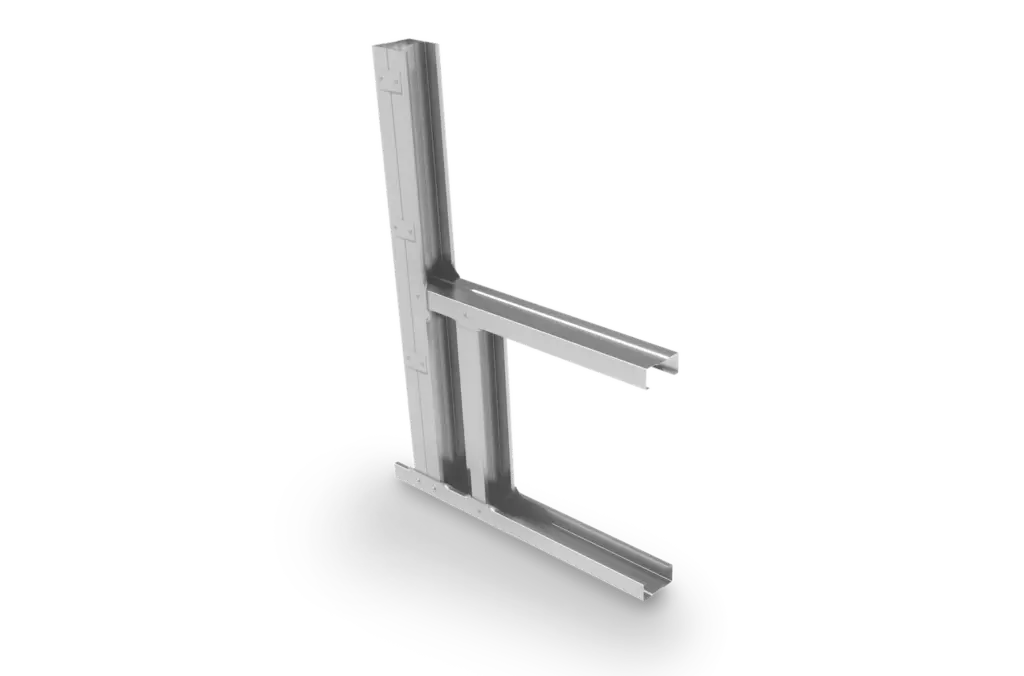

CILL AND LINTEL CONNECTION
Typical sill connection detail with a double jamb stud, used for longer openings where external wind pressure may be increased.

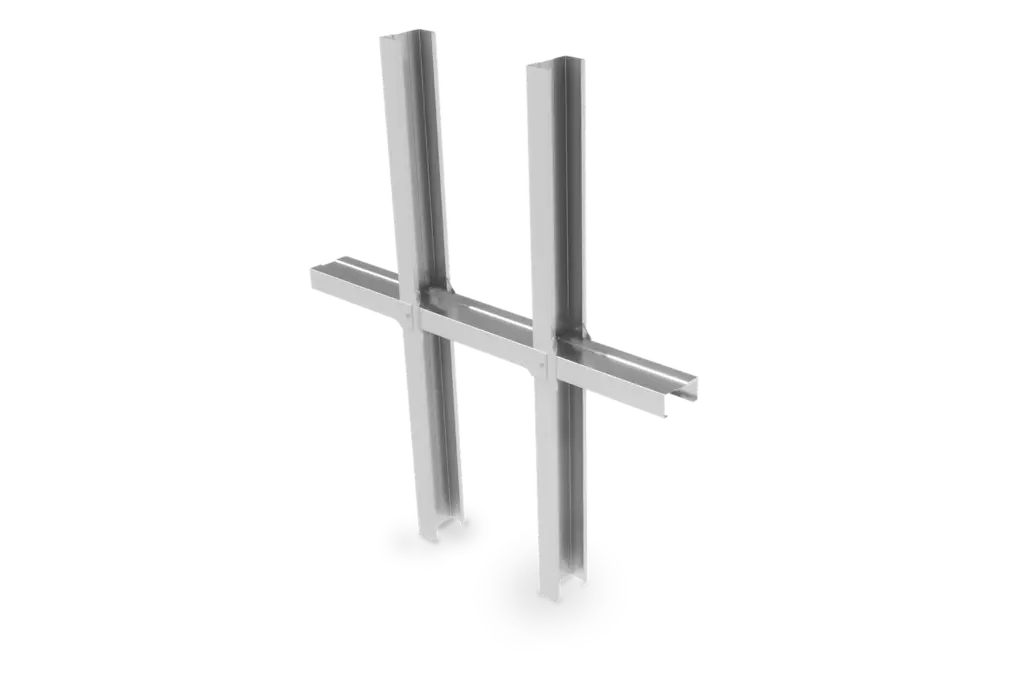

NOGGINS
Protec ‘noggin’ connection used as lateral restraint between studs, generally at height of 2.4m to fit with plaster board/CP board joints.
Documentation
Protec standard details documentation can be downloaded from our technical information page.
